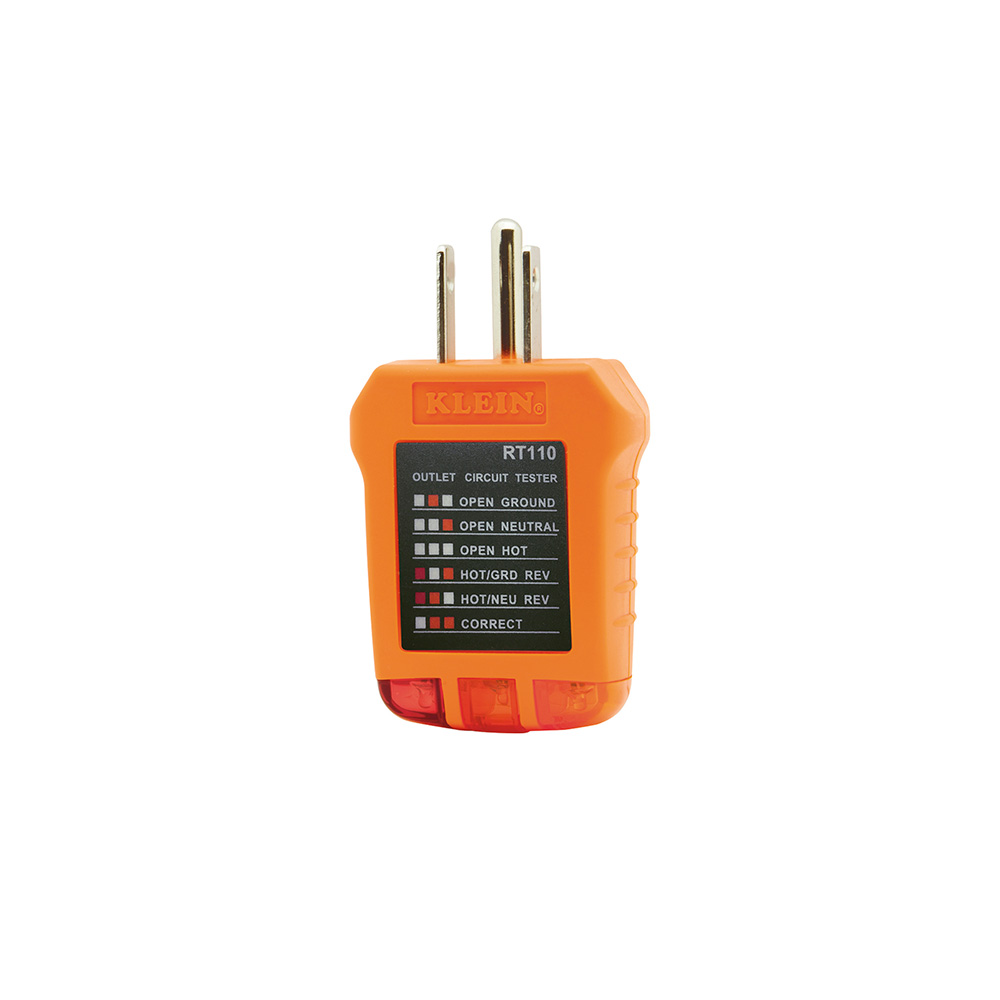

Receptacle Tester
RT110
- Outlet tester's light sequence on receptacle tester indicates correct/incorrect wiring
- Receptacle tester conforms to UL Std 1436, Certified to CSA Std C22.2 #160
- Operating temp: 32-degrees F to 140-degrees F (0-degrees C to 40-degrees C)
- Built to withstand a 6.6-foot (2m) drop
- Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet
- Designed to detect the most common wiring problems in standard receptacles
ÌÒ×ÓÊÓƵ RT110 Receptacle Tester detects the most common wiring problems in standard receptacles. Conditions indicated: wiring correct, open ground, reverse electrical outlet, open hot, open neutral, hot/ground reversed. Conditions not indicated: quality of ground, multiple hot wires, combinations of defects, reversal of grounded and grounding conductors.
Specifications
Drop Protection:
6.6' (2 m)
GFCI:
No
Voltage:
110/125V AC at 50/60Hz in 3-Wire Outlet
Overall Length:
1.62'' (4.1 cm)
Overall Height:
2.88'' (7.3 cm)
Overall Width:
1.88'' (4.8 cm)
Weight:
1.9 oz (54 g)
UPC:
092644690266
