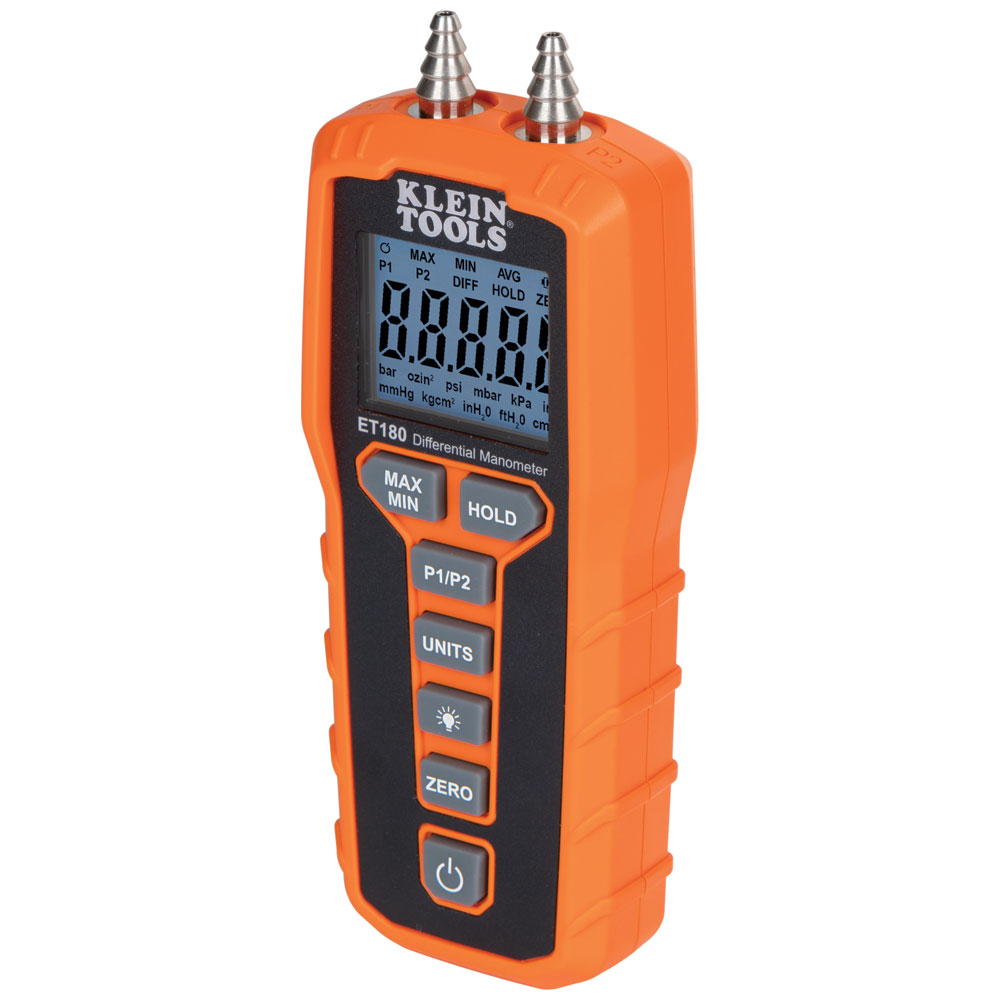

Digital Differential Manometer

ET180

  • Digital Manometer measures air and gas pressure for ports P1, P2, and differential
  • Range of +/- 60 inH2O and full scale accuracy of +/-1.5-Percent
  • Strong magnet on back for hands-free operation
  • Units measured: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O
  • Calculates minimum, maximum and average values
  • Large LCD is backlit for easy viewing in low light conditions
  • Auto-power off feature conserves battery life
  • Hold button locks current reading on the display
  • Silicon tubing, 3 x AAA batteries, and storage pouch included
ce Product Icon
Videos
Downloads
Images
High-Res JPG
PNG
Interactive Catalog

The ET180 Digital Differential Manometer from ÌÒ×ÓÊÓƵ measures air and gas pressure for port 1, port 2, and measures the differential between the ports. Easily toggle between units: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O. Large, backlit LCD shows minimum, maximum and average values. Magnet on back for hands-free operation.

Specifications
Type:
Differential Pressure
Application:
Measure Static and Differential Pressure
Special Features:
Magnet on Back of Housing
Modes:
P1, P2, Differential
Pressure Measurement Range:
+/- 60 inH2O
Maximum Pressure (psi):
2.16 PSI
Maximum Pressure Reading (wc):
60.0
Minimum Pressure Reading (wc):
-60.0
Accuracy:
+/-1.5% Full Scale
Measurement Units:
bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, inH2O, ftH20, and cmH2O
Number of Ports:
2
Connector Type:
Tapered Stainless Steel Ports from 1/8'' to 5/15''
Temperature Range:
32° to 122° F (0° to 50° C)
Display:
Backlit LCD
Batteries:
3 x AAA
Low Battery Indicator:
Yes
Auto-Power Off:
Yes
Material:
ABS, Stainless Steel
Overall Length:
2.47'' (6.3 cm)
Overall Height:
6.19'' (15.7 cm)
Overall Width:
1.38'' (3.5 cm)
Included:
Manometer; 6.56' (2 m) x 1/8'' (3 mm) Inside Diameter Silicon Tubing; 3 x AAA Batteries; Pouch; Instruction Manual
Standard:
Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified
Weight:
7.2 oz (202 g)
UPC:
092644693366
Additional Information
Warnings
  • Read, understand, and follow all instructions to ensure safe operation.
  • The meter is NOT insulated. Avoid contact with areas where energized conductive elements may be present. Shut off power to the area before starting measurements.
  • Always wear approved eye protection.
