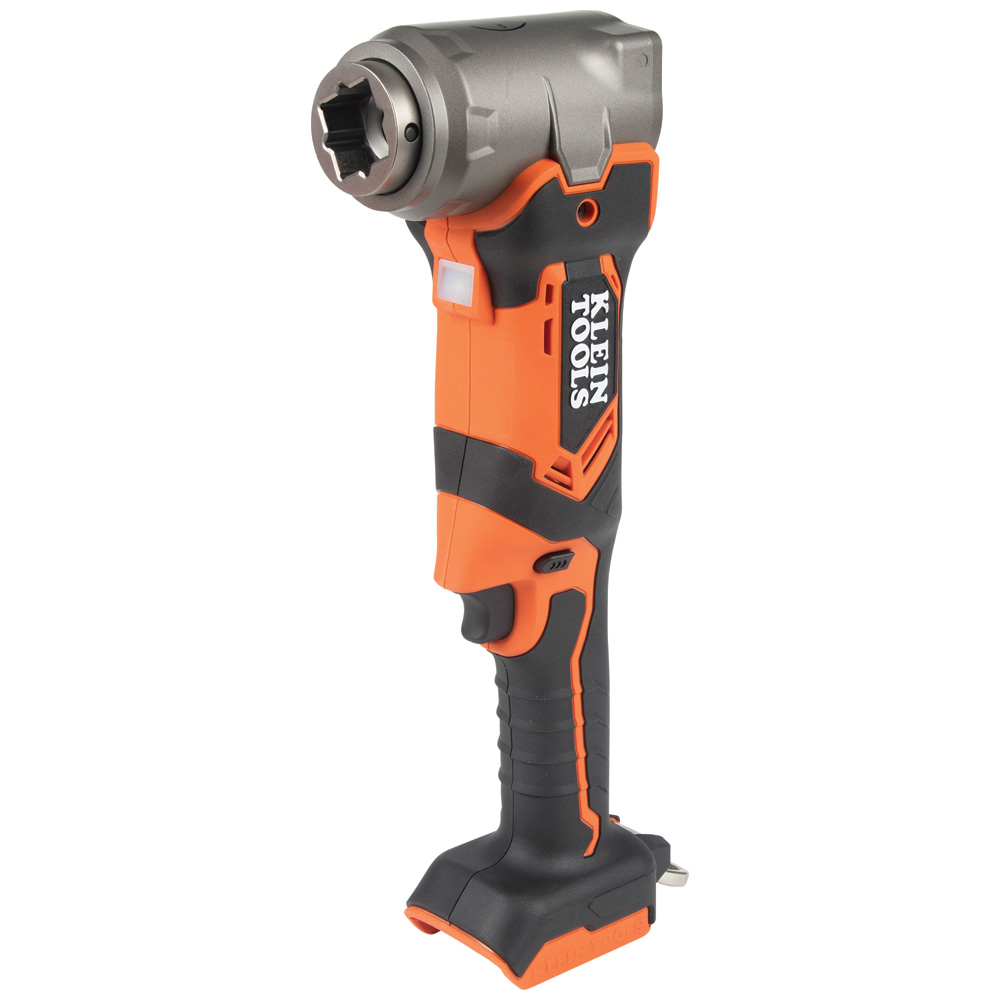

90-Degree Impact Wrench, Tool Only

BAT20LW

  • Right angle impact wrench provides versatility for better reach around a utility pole with less effort
  • Patent pending through hole design for longer bolts
  • Delivers 300 ft-lb of max torque for installing fasteners into wood, metal and concrete
  • Featuring 1-1/8-Inch, 1-Inch, 13/16-Inch and 3/4-Inch square drives
  • 0 -1800 RPM variable speed trigger for better control
  • Safety lockout switch
  • Work light illuminates darker spaces
  • Insertable socket designed for commonly used 3/4-Inch and 13/16-Inch bolt sizes (Cat. No. BAT20LWS)
  • 7/16-Inch Quick Connect Adapter works with drill bits, sockets and other accessories for added versatility (Cat. No. BAT20LWA)
  • Engineered and designed by ÌÒ×ÓÊÓƵ in the USA
  • Powered by DeWALT 20V lithium-ion batteries (sold separately)
  • DeWALT is a registered trademark of the Black & Decker corporation
Videos
Downloads
Images
High-Res JPG
PNG
Interactive Catalog

Engineered and designed by ÌÒ×ÓÊÓƵ in the USA, the patent pending design of the 90-Degree Impact Wrench provides a better, more ergonomic way to fasten in the field. The right angle on this tool allows the user to reach around a utility pole easier for better access with less fatigue. Up to 300 ft-lb of max torque for driving fasteners into wood, metal and concrete. It features a variable speed trigger and a variety of square drives (1-1/8-Inch, 1-Inch, 13/16-Inch and 3/4-Inch).

Specifications
Type:
Battery-Operated
Application:
Impact Fastening
Special Features:
Powered by DeWALT 20V Lithium-ion Batteries
Overall Length:
7.25'' (18 cm)
Overall Height:
18.4'' (47 cm)
Overall Width:
4.25'' (11 cm)
Handle Type:
In-Line
Drive Size:
1-1/8'', 1'', 13/16'', 3/4'' Square
Impacts per Minute:
0 - 1800
Torque Rating:
300 ft-lb
Maximum Speed:
1800 RPM
Brushless Motor:
Yes
Material:
ABS, PA6, GF, TPE
Batteries:
Lithium-Ion
Voltage:
20V
Included:
Tool Only
Weight:
7.5 lb (3.4 kg)
UPC:
092644291173
Additional Information
Warnings
  • Always use approved eye protection.
  • Do not use to pry or chisel.
  • Not insulated. Will not protect against electrical shock.
