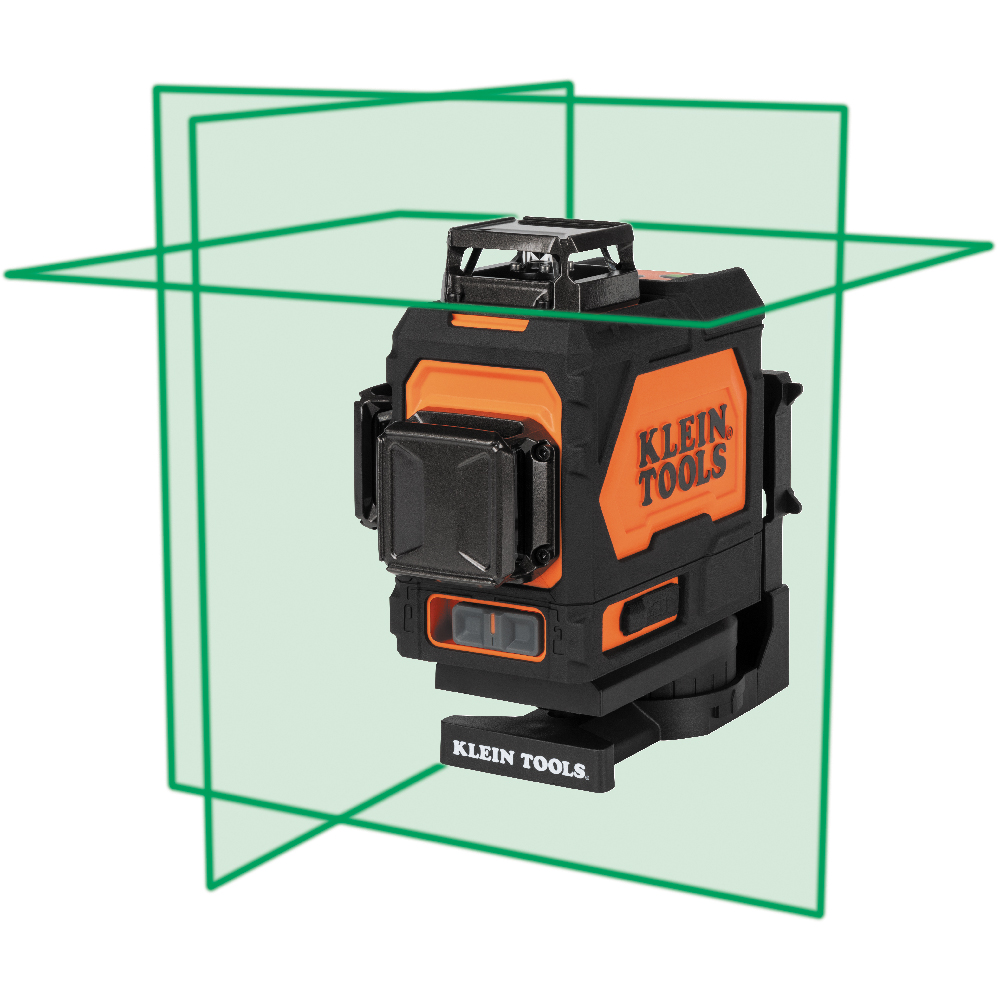

Rechargeable Self Leveling Green Planar Laser Level with Hard Carrying Case
93PLL
- Rechargeable Self-Leveling Green Planar Laser Level is easy-to-read with strong green horizontal and vertical laser lines
- Projects a line independently or together in X-, Y-, and Z-planes to align stud, concrete, tiles, conduit, and more
- Find Plumb spots much quicker than a traditional string bob by using the intersection of the Y and Z planes
- More than 9 hour run time with integrated rechargeable Li-Ion powered battery
- This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 510-530nm)
- Integrated magnetic mounting bracket with 1/4-Inch-20 tripod mounting threads
- Strong and rugged body provides IP54 water and dust resistance; hard plastic carrying case included
- Includes Li-Ion battery pack, USB-A to USB-C charging cable, magnetic mounting bracket, drop-resistant hard carrying case, and instructions
The ÌÒ×ÓÊÓƵ Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y-, and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-Inch-20 tripod mounting threads, Klein's self-leveling laser level is more precise than a traditional spirit or box level, and enables a multitude of alignment.
Specifications
Type:
Self-Leveling Laser Level
Application:
Self-Leveling Laser Alignment Instrument
Special Features:
Rechargeable Battery, Magnetic Mounting Bracket with 1/4-20 Tripod Mounting Threads; 3 Orthogonal 360° Planar Lines
Material:
ABS Housing and Electronic Components
Batteries:
Lithium-Ion
Laser Wavelength:
510-530 nm
Laser Safety:
≤1mW Each Beam, Class 2 Laser Product
Number of Beams:
3
Laser Color:
Green
Plumb Laser:
No
Indoor Range:
91' (28 m)
Outdoor Range:
91' (28 m)
Maximum Distance:
91' (28 m)
Accuracy:
+/-3/16'' per 33' (+/-4.7 mm per 10 m)
Pulse Mode:
No
Receiver:
No
Magnet Type:
Rare Earth Magnets
Ingress Protection:
IP54: Water and Dust Resistant
Transit Locking Mechanism:
Yes
Low Battery Indicator:
Yes
Standard:
EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007
Bag or Case:
Hard Carrying Case
Included:
Laser Level; Lithium-Ion Battery; USB-A to USB-C Cable; Magnetic Mounting Bracket; and Hard Carrying Case
Overall Length:
5.5'' (2.2 cm)
Overall Height:
3.5'' (1.4 cm)
Overall Width:
4.8'' (1.9 cm)
Weight:
1.4 lb (0.6 kg)
Battery Life:
9 hr
UPC:
092644692789
Warnings
- Exposing eyes to laser radiation can result in severe and permanent eye injuries.
- Do not use the instrument if it appears to be damaged.
- Do not modify the instrument in any way, as to do so could result in emission of hazardous laser radiation than could result in severe eye injuries.
- See instruction manual for additional warnings.
