HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp
CL320
- Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Measures temperature with a K-Type thermocouple probe
- Auto-Range, Data Hold, and Max/Min value
- Auto-power off after 10 minutes to conserve battery life

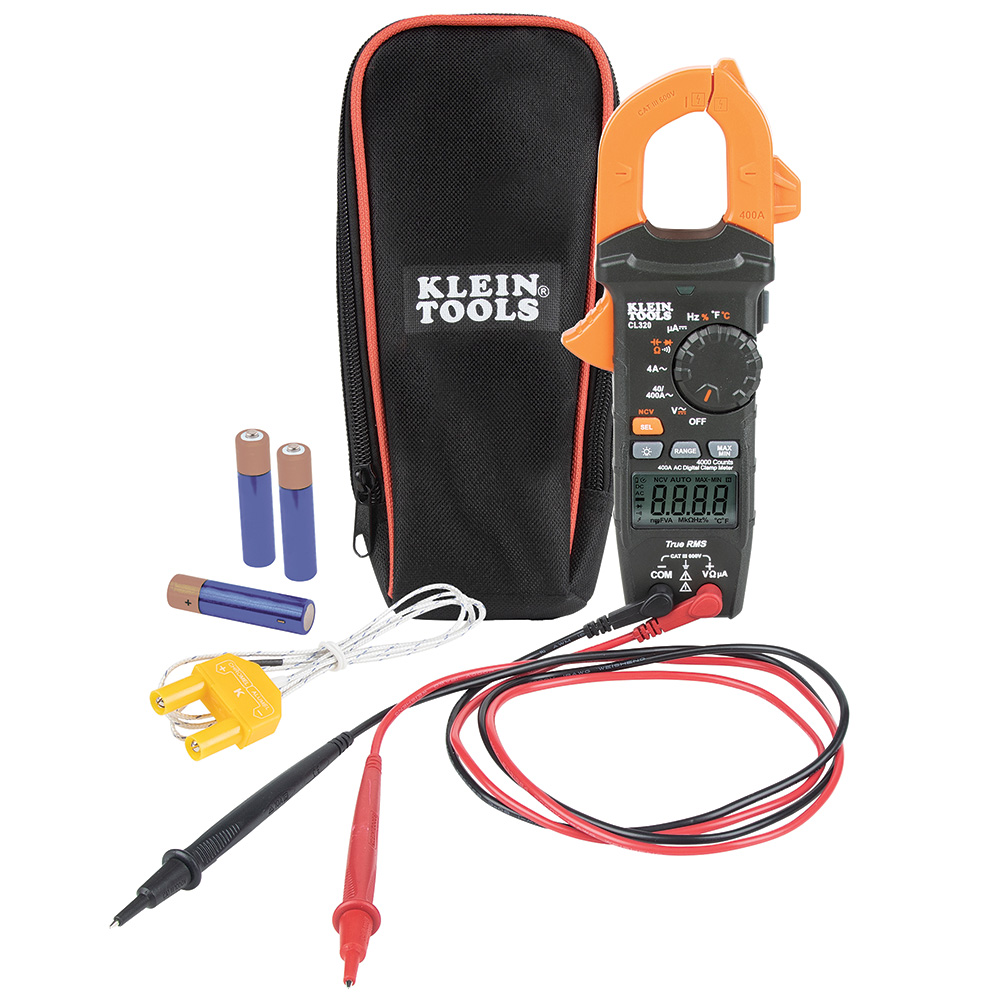

- Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2 m) drop
- CAT III 600V, Class 2, Double insulation safety rating
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
ÌÒ×ÓÊÓƵ CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
Specifications
Type:
HVAC TRMS Clamp
Application:
Measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamp, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
Special Features:
Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; HVAC Applications
Material:
ABS/Electronics
Batteries:
3 x AAA
Auto-Power Off:
Yes
Jaw Size:
1.6'' (4.1 cm)
Drop Protection:
6.6' (2 m)
Display:
4000 Count Backlit LCD
Display Size:
1.57'' x 0.87'' (4 x 2.2 cm)
Functions:
TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
Auto Ranging:
Yes
TRMS:
Yes
Voltage:
600V AC/DC
Frequency:
10 Hz -60 kHz
Current:
400 A AC
Capacitance:
4000 µF
Ohms (Resistance):
40MO
AC Voltage:
600V
DC Voltage:
600V
DC Polarity Indicator:
Yes
DC Micro-Amp:
200 μA
Temperature Range:
-40° - 1832°F (-40° - 1000°C)
Standard:
CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included:
Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
Overall Length:
8.45'' (21.5 cm)
Overall Height:
1.5'' (3.8 cm)
Overall Width:
3.5'' (8.9 cm)
Weight:
11 oz (314 g)
UPC:
092644692864
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not attempt to measure resistance or continuity on live circuits.
- Before each use verify meter operation by measuring a known voltage or current.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
- Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
