HVAC Electrical Test Kit

CL320KIT

  • HVAC Kit with testers for the HVAC Professional: HVAC Digital Clamp Meter, Dual IR/Probe Thermometer, and Dual Range Non-Contact Voltage Tester with Flashlight
  • Cat. No. CL320 HVAC Clamp Meter with TRMS technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature
  • Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); measure surface temperature with Infrared Thermometer (DS ratio 8:1)
  • Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures
  • Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
  • Non-Contact Voltage Tester detects voltage with simultaneous visual and audible voltage indicators
  • Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection
  • IR07 Thermometer is not a medical device and is NOT intended for use on people or animals
Videos
Downloads
Images
High-Res JPG
PNG
Interactive Catalog

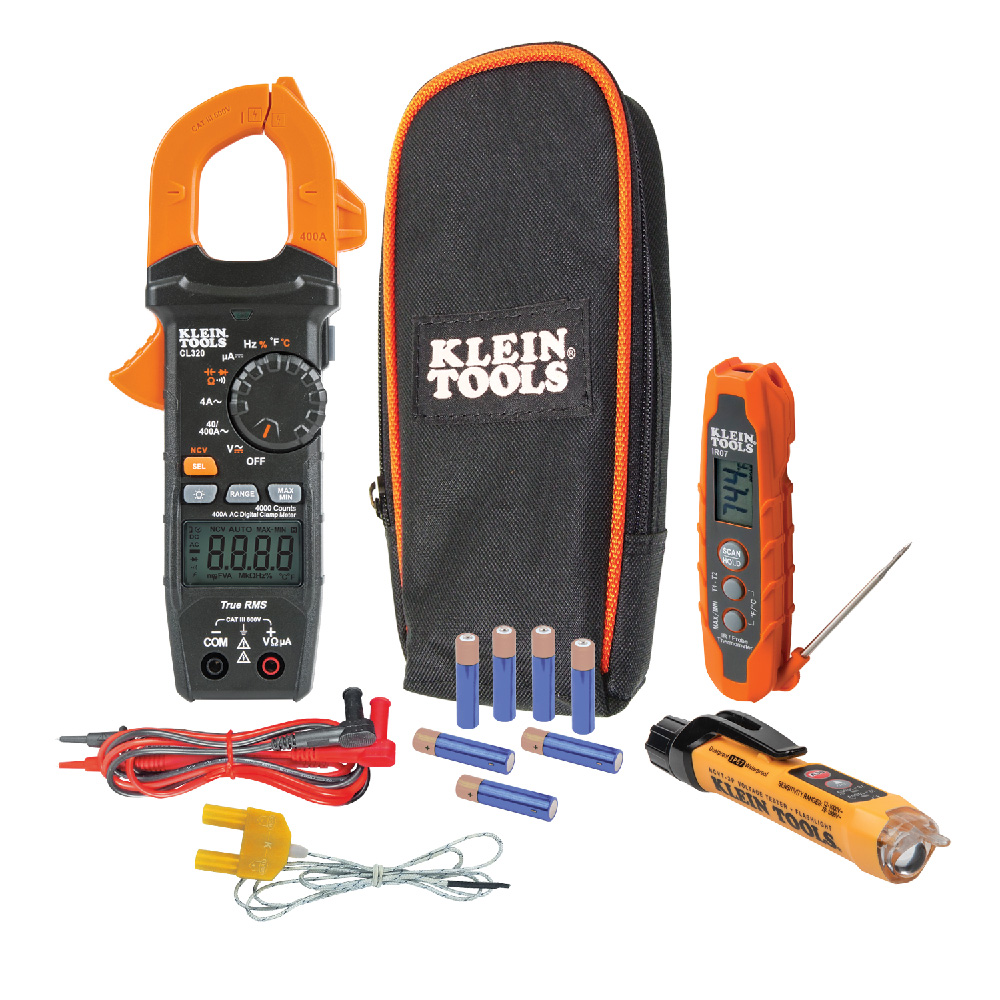

ÌÒ×ÓÊÓƵ HVAC Electrical Test Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.

Specifications
Type:
HVAC Testers
Application:
HVAC Electrical and Temperature Testing
Special Features:
Cat. No. CL320: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology; CAT. No. NCVT3P: NCVT with flashlight; Cat.No. IR07 Both IR and Probe Temperature
Material:
ABS/Electronics
Batteries:
7 x AAA
Auto-Power Off:
Yes
Jaw Size:
1.6'' (4.1 cm)
Drop Protection:
6.6' (2 m)
Display:
4000 Count Backlit LCD
Display Size:
1.57'' x 0.87'' (4 x 2.2 cm)
Functions:
TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
Auto Ranging:
Yes
TRMS:
Yes
Voltage:
Cat. No. CL320: 600V AC/DC; Cat. No. NCVT3P: 1000V AC
Frequency:
10 Hz to1 MHz
Current:
400 A AC
Capacitance:
4000 µF
Ohms (Resistance):
40MO
AC Voltage:
600V
DC Voltage:
600V
DC Polarity Indicator:
Yes
DC Micro-Amp:
200 μA
Temperature Range:
-40° to 1832°F (-40° to 1000°C)
Standard:
Cat. No CL320: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified; Cat. No. NCVT3P: CAT IV 1000
Included:
CL320 Digital Clamp Meter with Test Leads and Thermocouple; IR07 Dual IR and Probe Thermometer; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; Carrying Pouch; Instructions; and All Required Batteries
Overall Length:
8.45'' (21.5 cm)
Overall Height:
1.5'' (3.8 cm)
Overall Width:
3.5'' (8.9 cm)
Weight:
1.575 lb (0.7 kg)
UPC:
092644693496
Additional Information
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not attempt to measure resistance or continuity on live circuits.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
